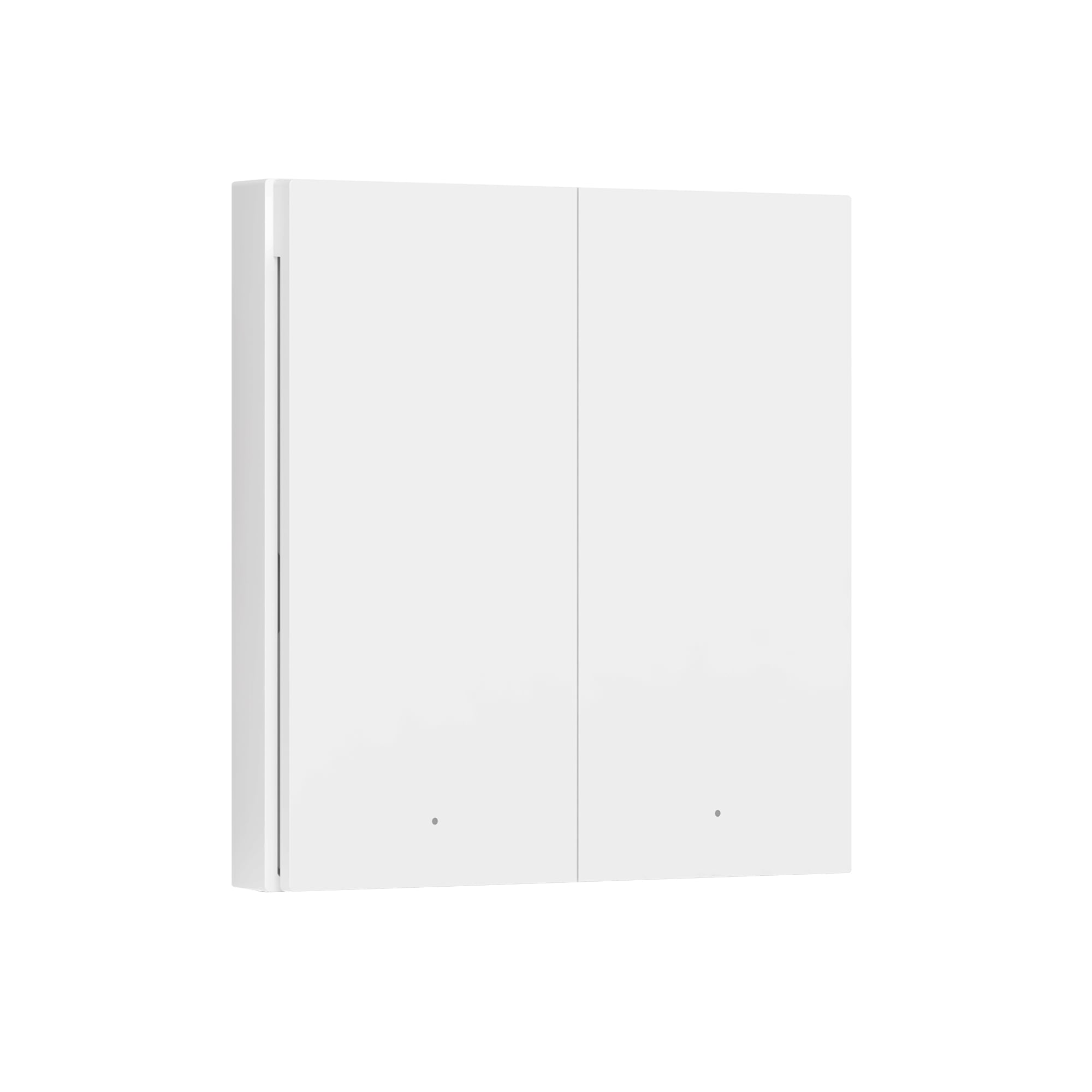

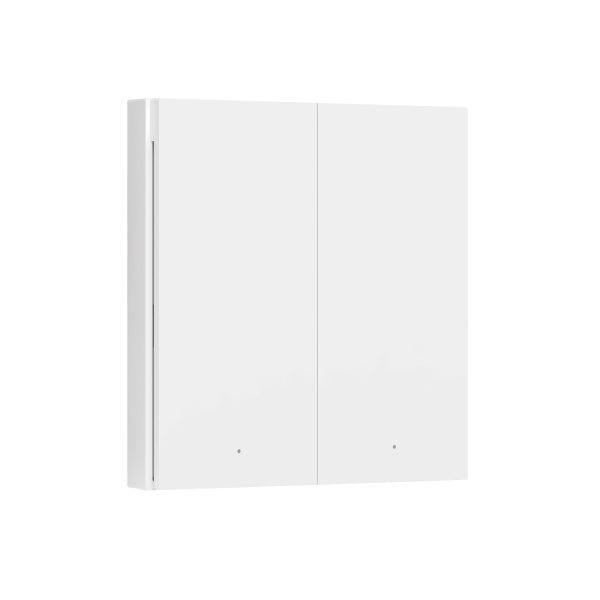

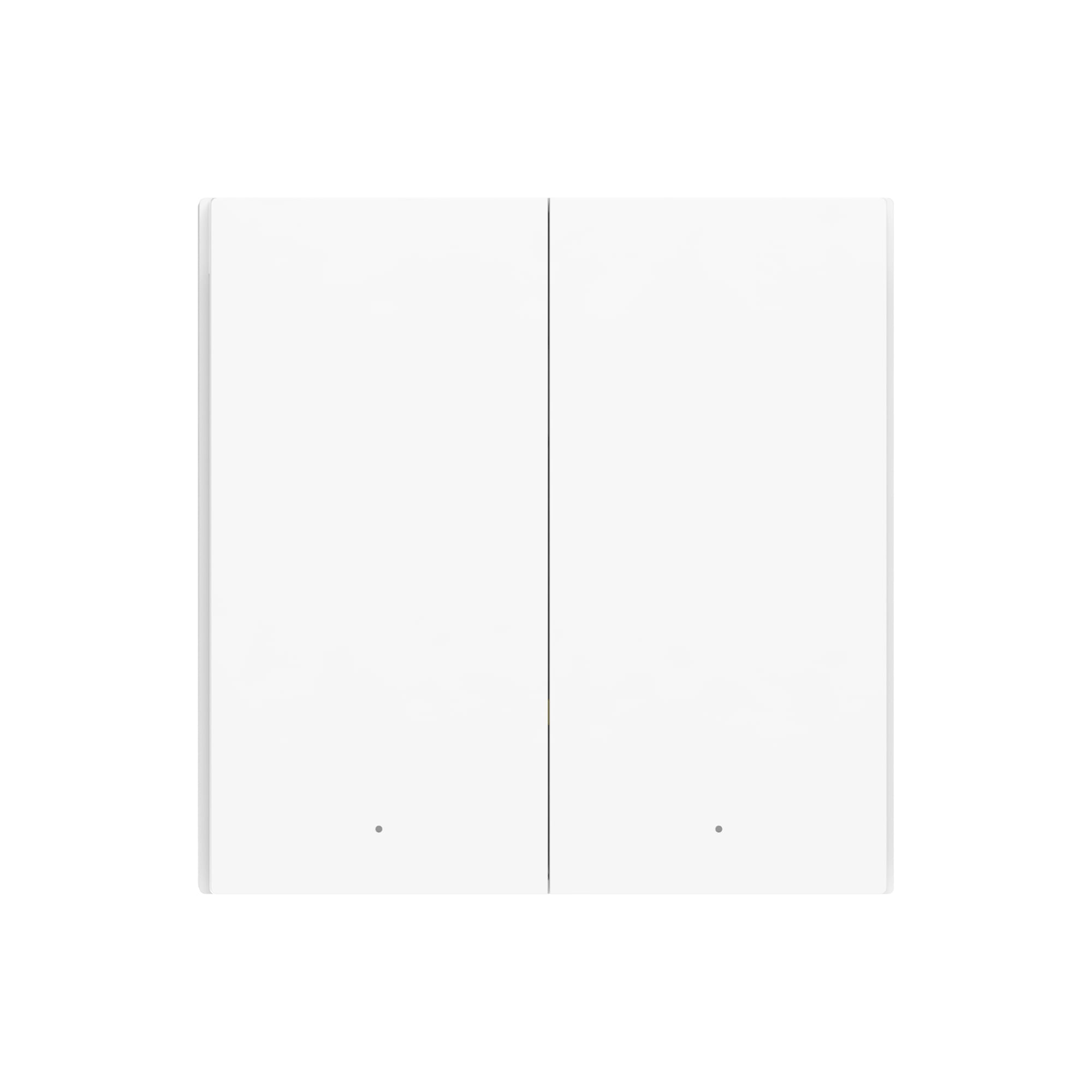

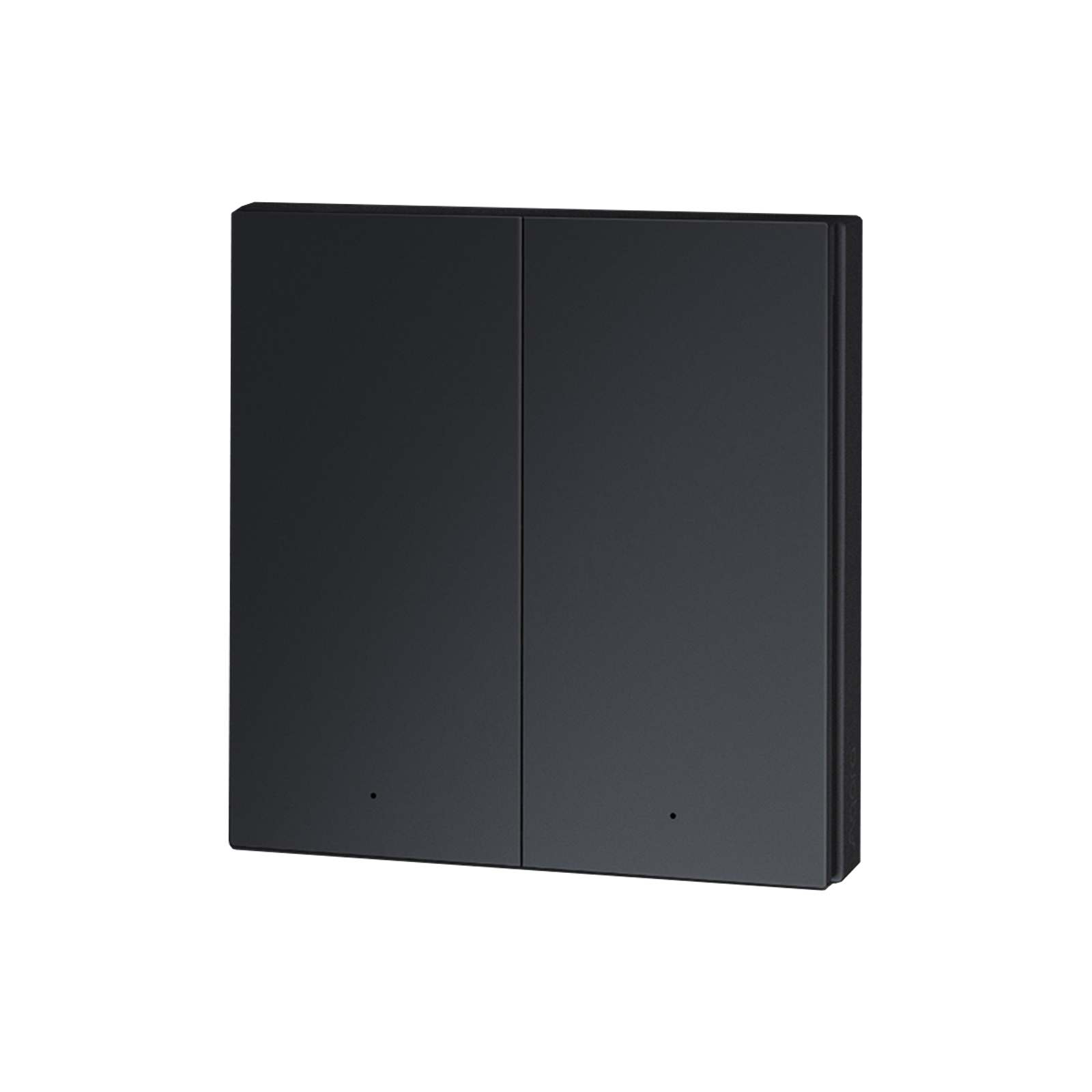

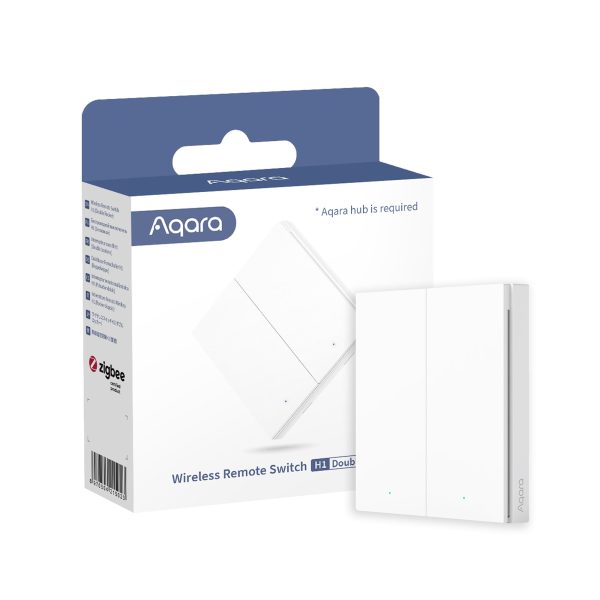

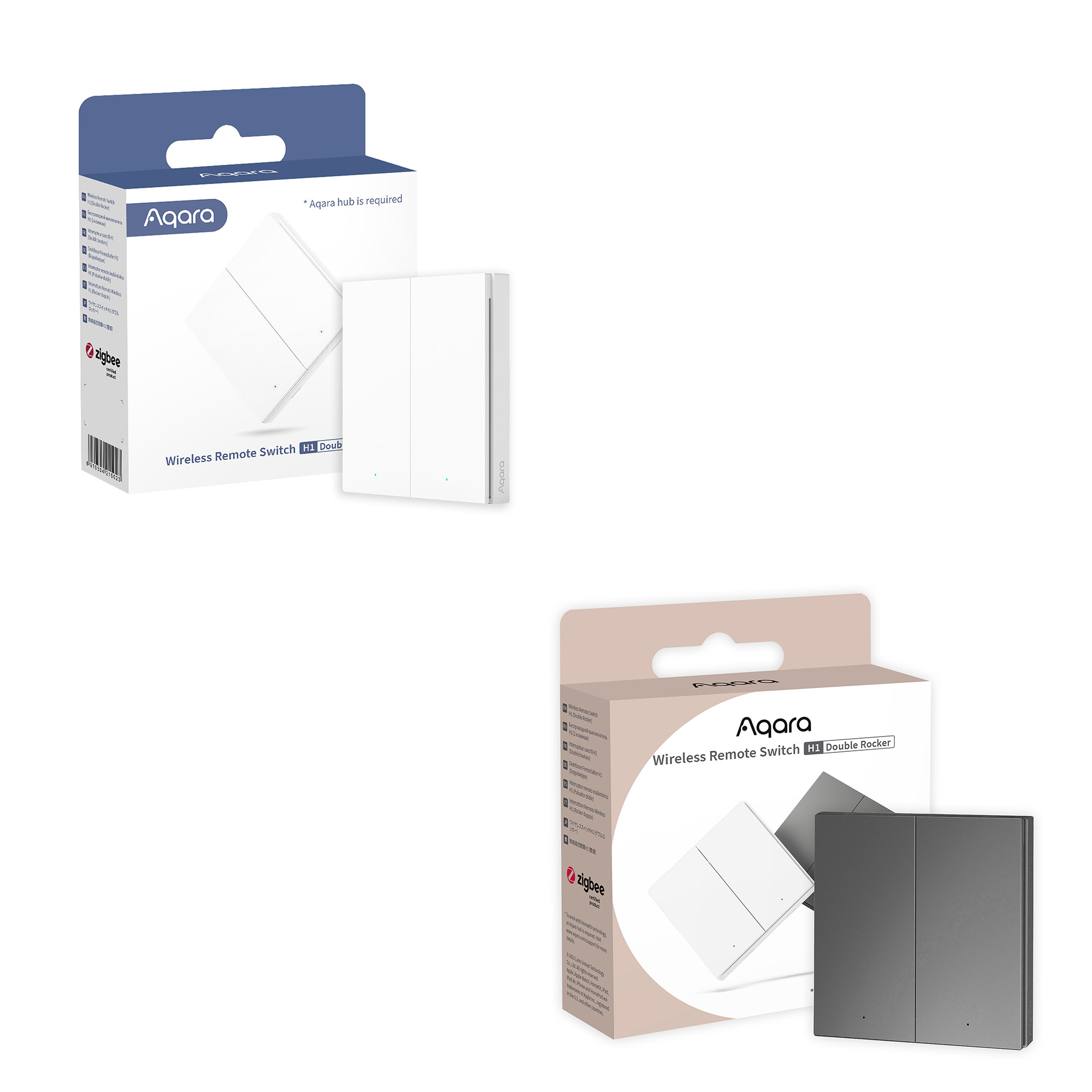

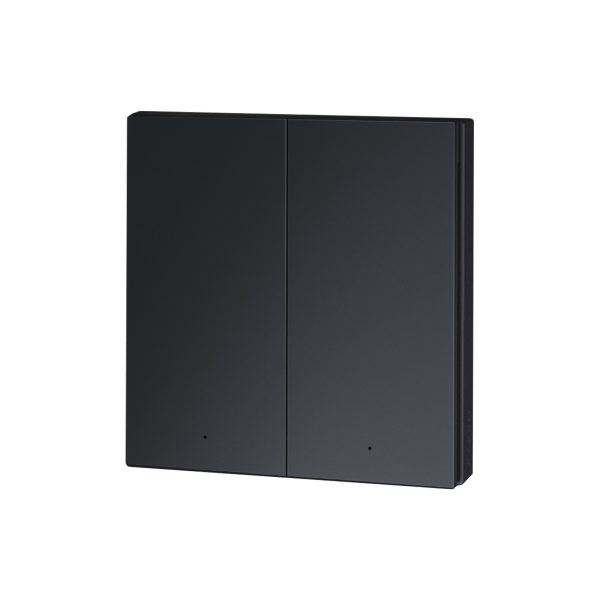

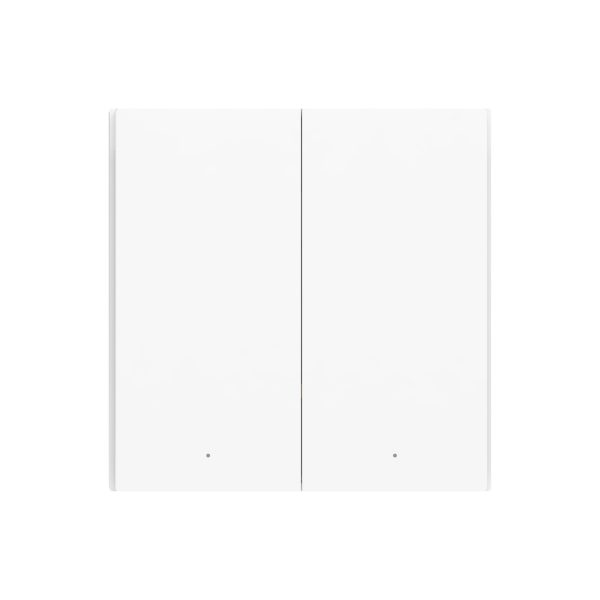

Aqara Wireless Remote Switch H1 (Double Rocker)

The Aqara Wireless Remote Switch H1 (Double Rocker) is a new wireless remote switch. It supports single press in the high-speed click mode, and 7 functions in the multi-function mode including single press left button, single press right button, double press left button, double press right button, long press left button and long-press right button. It is able to be placed or attached anywhere indoors. It also works with the Aqara hub and other Aqara smart devices to implement a variety of smart scenes.


Compatibility

Aqara Wireless Remote Switch H1 (Double Rocker) is compatible with the following systems:
Zigbee CompatibleWorks with Apple HomekitWorks With IFTTT

£26.99 inc. VAT

SKU: WRS-R02 Category: Tags: ,

Description

Aqara Wireless Remote Switch H1 (Double Rocker) – Control your lights and appliances from your favourite places

The Aqara Wireless Remote Switch H1 (Double Rocker) is a new wireless remote switch. It supports single press in the high-speed click mode, and 7 functions in the multi-function mode including single press left button, single press right button, double press left button, double press right button, long press left button and long-press right button. It is able to be placed or attached anywhere indoors. It also works with the Aqara hub and other Aqara smart devices to implement a variety of smart scenes.

Features:

  • Zigbee 3.0 Protocol*: Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology. Better stability and compatibility (more standardized protocol), longer support and more features.
  • Automation Support (via Aqara Home and Apple HomeKit): The switch can run automation, switch between smart scenes and change its functions depending on the time of the day or other conditions. Both Aqara Home (iOS/Android) and Apple HomeKit are supported.
  • Five-Year Battery Life: The longest battery life among other Aqara products.
  • High-Speed Click Mode: In this mode double and long press functions are not supported, but the latency decreases down to 50 ms.
  • 7 Configurable Actions: Single click, double click, long press, press 2 buttons simultaneously.

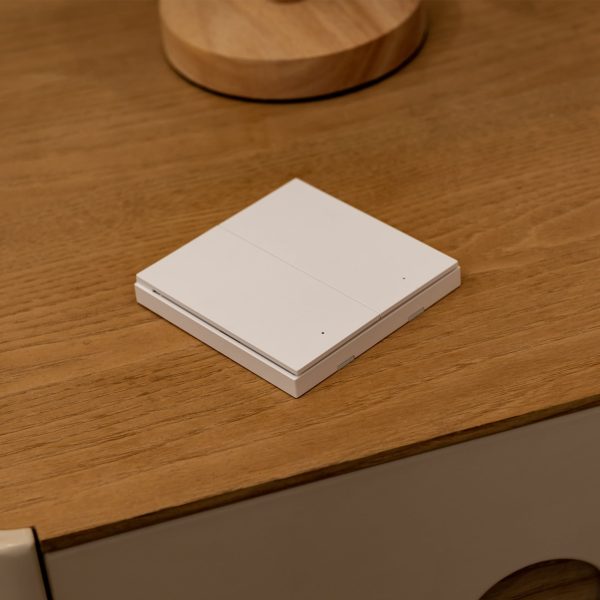

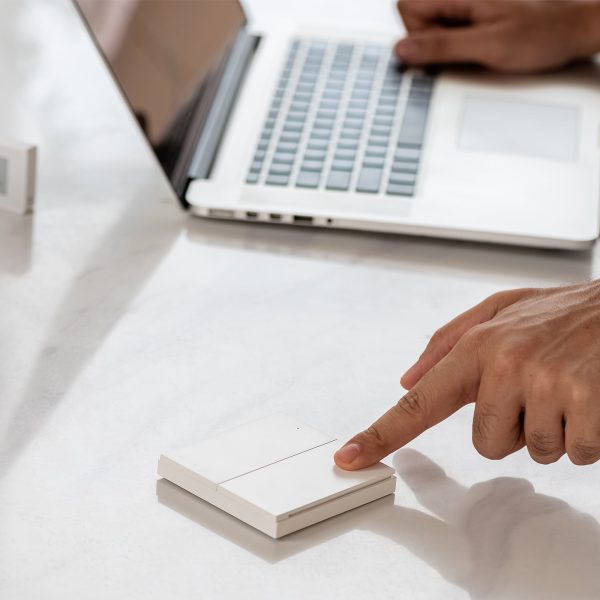

  • Flexible Installation: 3 installation methods including putting on the horizontal surface, sticking onto a flat surface using an included sticky pad and screwing in place of the existing wall box.
  • High-Quality Build: Uses the same design as Aqara’s flagship Wall Switch H1.
  • 2-Way Switch Setup Support with Wall Switch H1: By combining the Wireless Switch H1 with the Smart Wall Switch H1, you can easily control the same lights from two or more locations without having to add additional wiring.

*A compatible Zigbee 3.0 Aqara hub (USB Hub E1, Hub M2, Camera Hub G2H or Camera Hub G3) is required.

Manuals and Guides

Frequently Asked Questions

Q

What functions does the Aqara Wireless Remote Switch H1 (Double Rocker) support?

A

The Aqara Wireless Remote Switch H1 (Double Rocker) has two modes. It supports single press in the high-speed click mode, and 7 functions in the multi-function mode including single press left button, single press right button, double press left button, double press right button, long press left button and long press right button. The high-speed click mode means that the Aqara Wireless Remote Switch can respond very fast with the fastest responding speed of 50ms. In addition, the Aqara Wireless Remote Switch H1 (Double Rocker) also supports low battery alarm, Zigbee signal viewing, distributed networking, and accidental deletion protection, etc.


Q

What is the high-speed click mode? What is the multi-function mode?

A

The Aqara Wireless Remote Switch H1 (Double Rocker) has two modes, and it supports single press in the high-speed click mode, . The high-speed click mode means that the Wireless Remote Switch can respond very fast with the fastest responding speed of 50 milliseconds.


Q

How can I install the Aqara Wireless Remote Switch H1 (Double Rocker)?

A

The Aqara Wireless Remote Switch H1 (Double Rocker) can be attached to a wall using the adhesive sticker, placed on a desk or table, installed in the Aqara frame or in the traditional 86×86 cm size box (for wall switch).
Please Note:

  1. If you need to install the switch in the traditional 86×86 cm size box, you need to open the battery cover first, and use a tool to make a hole in the battery cover before installing it.
  2. If you need to install the switch on the Aqara frame, you need to tear off the non-slip silicone pad on the back of the product to expose the screw holes under the silicone pad, and then remove the battery cover for installation.

Q

How do I check if the Aqara Wireless Remote Switch H1 (Double Rocker) works properly?

A
  1. Single press the button 5 times continuously on the Aqara Wireless Remote Switch H1. If the Aqara Hub prompts voice message “Normal link confirmed”, it signifies the hub and the switch are connected.
  2. However, if it does not prompt a voice message, please move the Aqara Wireless Remote Switch H1 closer to the hub and try again. If there are still no voice messages, the Aqara Wireless Remote Switch H1 might be deleted or the battery has run out. Refer to the user manual for instructions to add again or replace the battery.
  3. Single press the Aqara Wireless Remote Switch H1 several times and go to the homepage of the app and select the Aqara Wireless Remote Switch H1 to check. If the status changes, it indicates the accessory is working properly.

Q

How do I reset the Aqara Wireless Remote Switch H1 (Double Rocker) ?

A
  1. Press and hold the button of the switch for more than 10 seconds. The indicator light will flash 3 times before restoring to factory settings.
  2. If the switch has been bound to a hub, ensure you delete it from the app first.
  3. If the accidental deletion protection function is activated, please turn off this function before deleting the device.

Q

What is the accidental deletion protection function?

A

The accidental deletion protection function prevents the device from being reset or unbound due to accidental operation. If this function is enabled on the Hub setting page, when the network is normal, long pressing the reset button will not reset the Aqara Wireless Remote Switch H1 (Double Rocker) or make it off-line.


Q

When will the Aqara Wireless Remote Switch H1 (Double Rocker) report alert for low battery?

A

The device will report a low battery alert when the battery power of the Aqara Wireless Remote Switch H1 (Double Rocker) is lower than 2.7V for 3 consecutive hours.


Q

What is distributed networking?

A

To put it simply, the child devices do not require a hub, and the controller and actuator can be networked in pairs. For some Zigbee 3.0 strong current devices (such as the Aqara Smart Plug T1), you can click the reset button for 3 times when the device is not bound to any hub to enable the distributed networking mode. At this time, press and hold the button of the Aqara Wireless Remote Switch H1 (Double Rocker) for 10 seconds to start distributed networking.


Q

How to bind the Aqara Wireless Remote Switch H1 (Double Rocker) to the hub?

A
  1. Open the Aqara Home app, go to the accessory adding page, select the Aqara Wireless Remote Switch H1 (Double Rocker), and select the corresponding hub.
  2. Press and hold the button of the Aqara Wireless Remote Switch H1 (Double Rocker) for 10 seconds, and the indicator light will flash for 3 times quickly when the device is powered on.
  3. If the device is successfully bound, the indicator light will flash twice slowly; if it fails, it will stay on for 1 second.
  4. If the addition fails, you will need to move the switch closer to the hub and try again.

Q

Why does the Aqara Wireless Remote Switch H1 (Double Rocker) fail to switch to the high-speed click mode or the multi-function mode?

A
  1. When you click the corresponding mode to switch, you need to click the button five times quickly until the gateway prompts “Normal link confirmed” (only supported in some Aqara hubs).
  2. The device may be too far away from the hub, or fail to receive mode switching command issued by the hub due to signal interference.
  3. If the device is offline, you can reset and bind the wireless switch again.

Q

Which Aqara Hub does the Aqara Wireless Remote Switch H1 (Double Rocker) support?

A

At the moment it supports the Aqara Camera Hub G2H, Aqara Hub M1S, Aqara Hub M2, Aqara Air Conditioning Controller P3, Aqara Smart Wall Outlet H1 (USB) and more devices will be supported in the future.


Videos

Product Specifications

Physical and Performance Attributes

Weight142 grams

Misc Product Attributes

Aqara Wireless Remote Switch H1 (Double Rocker)

Product Model: WRS-R02

Dimensions: 85.8×86×12.5 mm

Wireless Protocol: Zigbee 3.0 IEEE 802.15.4

Operating Temperature: -10°C~+50°C

Operating Humidity: 0~95% RH, No condensation

Battery Type: CR2450
